 Switch and Jumper Setting - PCI 16 Channels Photo Isolator Input/Output card

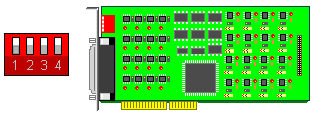

Switch settings follow as:

Card No 1 : All OFF
Card No 2 : 1 ON, 2, 3, 4 OFF
Card No 3 : 2 ON, 1, 3, 4 OFF
Card No 4 : 3 ON, 1, 2, 4 OFF

The switch is used to identify card number. Please set card number by card identifier switch, the PCI BIOS will assign pre-allocated I/O address to each adapter. Please set different card number to each adapter (do not duplicate card number setting.

Jumper Setting



Jumper Description (JP1 to JP16)
Jumper
Description
Open
Voltage input 0 to 35V
Short Voltage input 0 to 20V

The JP1 is used to select voltage signal range of photo couple input channel 1, and the JP2 is used to select voltage signal range of photo input channel 2, When we short the jumper, the input voltage range is 0 to 20V, and open the jumper means input voltage range is 0 to 35V.
