Connector-PCI 16 Channels Photo Isolator Input / Output Card

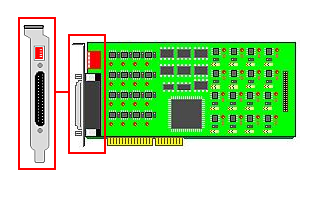

DB 37 Connector Pin Assignments (J2)

Pin
Single
Description
1
PAO-01+ Opto-isolator Ch. 01 + Output
2
PAO -01- Opto-isolator Ch. 01 - Output
3
PAO -02+ Opto-isolator Ch. 02 + Output
4
PAO -02- Opto-isolator Ch. 02 - Output
5
PAO -03+ Opto-isolator Ch. 03 + Output
6
PAO -03- Opto-isolator Ch. 03 - Output
7
PAO -04+ Opto-isolator Ch. 04 + Output
8
PAO -04- Opto-isolator Ch. 04 - Output
9
PAO -05+ Opto-isolator Ch. 05 + Output
10
PAO -05- Opto-isolator Ch. 05 - Output
11
PAO -06+ Opto-isolator Ch. 06 + Output
12 PAO -06-
Opto-isolator Ch. 06 - Output
13
PAO -07+ Opto-isolator Ch. 07 + Output
14
PAO -07- Opto-isolator Ch. 07 - Output
15
PAO -08+ Opto-isolator Ch. 08 + Output
16
PAO -08- Opto-isolator Ch. 08 - Output
17
NC

18
NC
19
NC
20
PBO-01+ Opto-isolator Ch. 09 + Output
21
PBO -01- Opto-isolator Ch. 09 - Output
22
PBO-02+ Opto-isolator Ch. 10 + Output
23
PBO -02- Opto-isolator Ch. 10 - Output
24
PBO-03+ Opto-isolator Ch. 11 + Output
25
PBO -03- Opto-isolator Ch. 11 - Output
26
PBO-04+ Opto-isolator Ch. 12 + Output
27
PBO -04- Opto-isolator Ch. 12 - Output
28
PBO-05+ Opto-isolator Ch. 13 + Output
29
PBO -05- Opto-isolator Ch. 13 - Output
30
PBO-06+ Opto-isolator Ch. 14 + Output
31
PBO -06- Opto-isolator Ch. 14 - Output
32
PBO-07+ Opto-isolator Ch. 15 + Output
33
PBO -07- Opto-isolator Ch. 15 - Output
34
PBO-08+ Opto-isolator Ch. 16 + Output
35
PBO -08- Opto-isolator Ch. 16 - Output
36
NC
37
NC

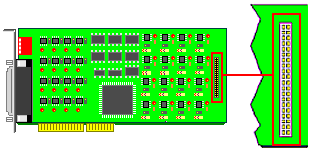

40 Connector Pin Assignments (J1)


Pin
Single
Description
1
PAI-01+
Opto-isolator Ch. 01 + Input
3
PAI -01- Opto-isolator Ch. 01 - Input
5
PAI-02+ Opto-isolator Ch. 02 + Input
7
PAI -02- Opto-isolator Ch. 02 - Input
9
PAI-03+ Opto-isolator Ch. 03 + Input
11
PAI -03- Opto-isolator Ch. 03 - Input
13
PAI-04+ Opto-isolator Ch. 04 + Input
15
PAI -04- Opto-isolator Ch. 04 - Input
17
PAI-05+ Opto-isolator Ch. 05 + Input
19
PAI -05- Opto-isolator Ch. 05 - Input
21
PAI-06+ Opto-isolator Ch. 06 + Input
23
PAI -06- Opto-isolator Ch. 06 - Input
25
PAI-07+ Opto-isolator Ch. 07 + Input
27
PAI -07- Opto-isolator Ch. 07 - Input
29
PAI-08+ Opto-isolator Ch. 08 + Input
31
PAI -08- Opto-isolator Ch. 08 - Input
33
NC

35
NC
37
NC
2
NC
4
PBI -01+ Opto-isolator Ch. 09 + Input
6
PBI -01-
Opto-isolator Ch. 09 - Input
8
PBI -02+ Opto-isolator Ch. 10 + Input
10
PBI -02- Opto-isolator Ch. 10 - Input
12
PBI -03+ Opto-isolator Ch. 11 + Input
14
PBI -03- Opto-isolator Ch. 11 - Input
16
PBI -04+ Opto-isolator Ch. 12 + Input
18
PBI -04- Opto-isolator Ch. 12 - Input
20
PBI -05+ Opto-isolator Ch. 13 + Input
22
PBI -05- Opto-isolator Ch. 13 - Input
24
PBI -06+ Opto-isolator Ch. 14 + Input
26
PBI -06- Opto-isolator Ch. 14 - Input
28
PBI -07+ Opto-isolator Ch. 15 + Input
30
PBI -07- Opto-isolator Ch. 15 - Input
32
PBI -08+ Opto-isolator Ch. 16 + Input
34
PBI -08- Opto-isolator Ch. 16 - Input
36
NC

NC

NC

NC
