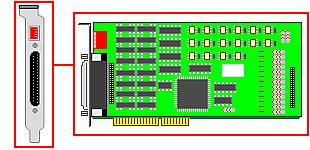

PCI 16 Channels Relay Output / Photo Isolator Input card

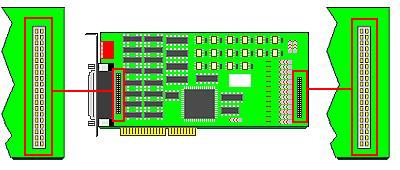

40 Pins Connector J2 and J3

40 Pins Connector J2

Pin
Single
Description

1
NO-01
Relay Ch. 01 - Output

2
COM-01
Relay Ch. 01 - Output

3
NO-02
Relay Ch. 02 - Output

4
COM-02
Relay Ch. 02 - Output

5
NO-03
Relay Ch. 03 - Output

6
COM-03
Relay Ch. 03 - Output

7
NO-04
Relay Ch. 04 - Output

8
COM-04
Relay Ch. 04 - Output

9
NO-05
Relay Ch. 05 - Output

10
COM-05
Relay Ch. 05 - Output

11
NO-06
Relay Ch. 06 - Output

12
COM-06
Relay Ch. 06 - Output

13
NO-07 Relay Ch. 07 - Output

14
COM-07
Relay Ch. 07 - Output

15
NO-08
Relay Ch. 08 - Output

16
COM-08
Relay Ch. 08 - Output

17
NO-09
Relay Ch. 09 - Output

18
COM-09
Relay Ch. 09 - Output

19
NO-010
Relay Ch. 10 - Output

20
COM-10
Relay Ch. 10 - Output

21
NO-11
Relay Ch. 11 - Output

22
COM-11
Relay Ch. 11 - Output

23
NO-12
Relay Ch. 12 - Output

24
COM-12
Relay Ch. 12 - Output

25
NO-13
Relay Ch. 13 - Output

26
COM-13
Relay Ch. 13 - Output

27
NO-14
Relay Ch. 14 - Output

28
COM-14
Relay Ch. 14 - Output

29
NO-15
Relay Ch. 15 - Output

30
COM-15
Relay Ch. 15 - Output

31
NO-16
Relay Ch. 16 - Output

32
COM-16
Relay Ch. 16 - Output

33
GND
GND

34
GND
GND

35
DC + 5V
DC + 5V Output

36
DC + 5V
DC + 5V Output

37
DC + 12V
DC + 12V Output

38
DC + 12V
DC + 12V Output

39
GND
GND

40
GND
GND

40 Pins Connector J3

Pin
Single
Description

1
IN-01-
Opto-isolator Ch. 01 - Input

2
IN-01+
Opto-isolator Ch. 01 + Input

3
IN-02-
Opto-isolator Ch. 02 - Input

4
IN-02+
Opto-isolator Ch. 02 + Input

5
IN-03-
Opto-isolator Ch. 03 - Input

6
IN-03+
Opto-isolator Ch. 03 + Input

7
IN-04-
Opto-isolator Ch. 04 - Input

8
IN-04+
Opto-isolator Ch. 04 + Input

9
IN-05-
Opto-isolator Ch. 05 - Input

10
IN-05+
Opto-isolator Ch. 05 + Input

11
IN-06-
Opto-isolator Ch. 06 - Input

12
IN-06+
Opto-isolator Ch. 06 + Input

13
IN-07-
Opto-isolator Ch. 07 - Input

14
IN-07+
Opto-isolator Ch. 07 + Input

15
IN-08-
Opto-isolator Ch. 08 - Input

16
IN-08+
Opto-isolator Ch. 08 + Input

17
IN-09-
Opto-isolator Ch. 09 - Input

18
IN-09+
Opto-isolator Ch. 09 + Input

19
IN-10-
Opto-isolator Ch. 10 - Input

20
IN-10+
Opto-isolator Ch. 10 + Input

21
IN-11-
Opto-isolator Ch. 11 - Input

22
IN-11+
Opto-isolator Ch. 11 + Input

23
IN-12-
Opto-isolator Ch. 12 - Input

24
IN-12+
Opto-isolator Ch. 12 + Input

25
IN-13-
Opto-isolator Ch. 13 - Input

26
IN-13+
Opto-isolator Ch. 13 + Input

27
IN-14-
Opto-isolator Ch. 14 - Input

28
IN-14+
Opto-isolator Ch. 14 + Input

29
IN-15-
Opto-isolator Ch. 15 - Input

30
IN-15+
Opto-isolator Ch. 15 + Input

31
IN-16-
Opto-isolator Ch. 16 - Input

32
IN-16+
Opto-isolator Ch. 16 + Input

33
GND
GND

34
GND
GND

35
DC+5V
DC+5V output

36
DC+5V
DC+5V output

37
DC+12V
DC+12V output

38
DC+12V
DC+12V output

39
GND
GND

40
GND
GND

Pin
Single
Description

1
NO01
Relay channel 1, Normal open output

2
NO02
Relay channel 2, Normal open output

3
NO03
Relay channel 3, Normal open output

4
NO04
Relay channel 4, Normal open output

5
NO05
Relay channel 5, Normal open output

6
NO06
Relay channel 6, Normal open output

7
NO07
Relay channel 7, Normal open output

8
NO08
Relay channel 8, Normal open output

9
NO09
Relay channel 9, Normal open output

10
NO10
Relay channel 10, Normal open output

11
NO11
Relay channel 11, Normal open output

12
NO12
Relay channel 12, Normal open output

13
NO13
Relay channel 13, Normal open output

14
NO14
Relay channel 14, Normal open output

15
NO15
Relay channel 15, Normal open output

16
NO16
Relay channel 16, Normal open output

17
GND
GND

18
DC + 5V
DC + 5V output

19
DC +12V
DC +12V output

20
COM01
Relay channel 1, COMMON output

21
COM02
Relay channel 2, COMMON output

22
COM03
Relay channel 3, COMMON output

23
COM04
Relay channel 4, COMMON output

24
COM05
Relay channel 5, COMMON output

25
COM06
Relay channel 6, COMMON output

26
COM07
Relay channel 7, COMMON output

27
COM08
Relay channel 8, COMMON output

28
COM09
Relay channel 9, COMMON output

29
COM010
Relay channel 10, COMMON output

30
COM11
Relay channel 11, COMMON output

31
COM12
Relay channel 12, COMMON output

32
COM13
Relay channel 13, COMMON output

33
COM14
Relay channel 14, COMMON output

34
COM15
Relay channel 15, COMMON output

35
COM16
Relay channel 16, COMMON output

36
GND
GND

37
DC + 5V
DC + 5V output
