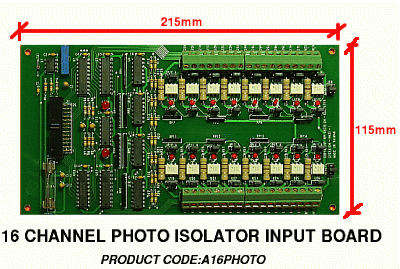

16 CHANNEL PHOTO ISOLATOR INPUT BOARD

The 16 Channel Isolator Input Board provides 16 Opto-Isolated Digital Input Channels, which allow the input signals to be completely floated and prevent the ground loop. There are LED indicator correspond to 16 input channels, when the input channel is activated at high status, the corresponding LED is light. The power source is user selectable from internal PC bus or external power supplier.


Features :

Support 16 Opto-Isolated input channels.

LED indicates when input channel is activated.

Internal and external power selectable.

Built in screw terminals for easy wiring.

Allow the input signals to be completely floated and prevent the ground loops.

Isolated or non-isolated modes selectable.

Input threshold voltage adjustable.


Breakdown voltage: 1500V DC.

Screw terminal: accept #22 to #12 awg wire.

Input current: 80mA maximum for each isolated input.

Input voltage: 30VDC maximum for each isolated input.

The package includes following item

 SMARTLAB PCI bus 16 channels photo couple input/output½ adapter.

One flat cable.

User's manual.
